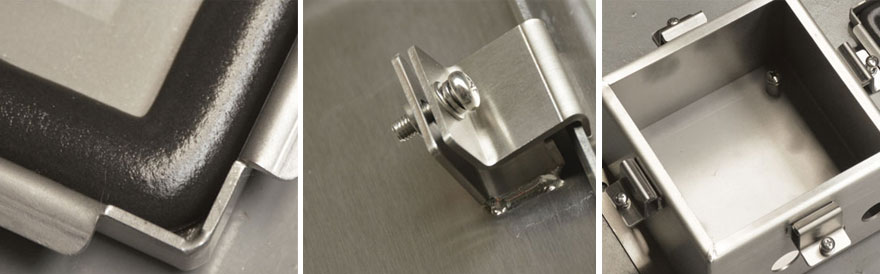

HNF标准机箱




产品材料

304、316L不锈钢;冷轧钢板
箱体:1.5mm
门板:1.5mm(高度小于500mm)
安装板:2.0mm

表面处理

不锈钢:拉丝,240目
冷轧钢板:喷涂,RAL 7035
安装板:304/316;环保镀锌板

防护等级

IP66,依据标准:IEC60529 同时符合NEMA Type 4X

产品认证

* UL * CE *ROHS *TUV *ISO90001 *ISO3834-2

产品参数

HNF(mm)
物料编号Material Number尺寸Size物料编号Material Number尺寸Size
碳钢CSSUS304不锈钢SUS316L不锈钢高度(H)mm宽度(W)mm深度(D)mm碳钢CSSUS304不锈钢SUS316L不锈钢高度(H)mm宽度(W)mm深度(D)mm
9111500191215001913150011021028391115501912155019131550110210283
9111500291215002913150021521028391115502912155029131550215210283
9111500391215003913150032031529691115503912155039131550320315296
911150049121500491315004203203109911155049121550491315504203203109
911150059121500591315005203152159911155059121550591315505203152159
911150069121500691315006203203159911155069121550691315506203203159
911150079121500791315007203152109911155079121550791315507203203109
911150089121500891315008152102109911155089121550891315508152102109
911150099121500991315009152152109911155099121550991315509152152109
911150109121501091315010254203109911155109121551091315510254203109
911150119121501191315011254203159911155119121551191315511254203159
911150129121501291315012254254159911155129121551291315512254254159
911150139121501391315013305254134911155139121551391315513305254136
911150149121501491315014305152109911155149121551491315514305152109
911150159121501591315015305254159911155159121551591315515305254159
911150169121501691315016305305159911155169121551691315516305305159
911150179121501791315017305254210911155179121551791315517305254210
911150189121501891315018356305159911155189121551891315518356305159
911150199121501991315019356203159911155199121551991315519356203159
911150209121502091315020356305210911155209121552091315520356305210
911150219121502191315021406356159911155219121552191315521406356159
911150229121502291315022406254159911155229121552291315522406254159
911150239121502391315023406356210911155239121552391315523406356210
911150249121502491315024406356261911155249121552491315524406356261
